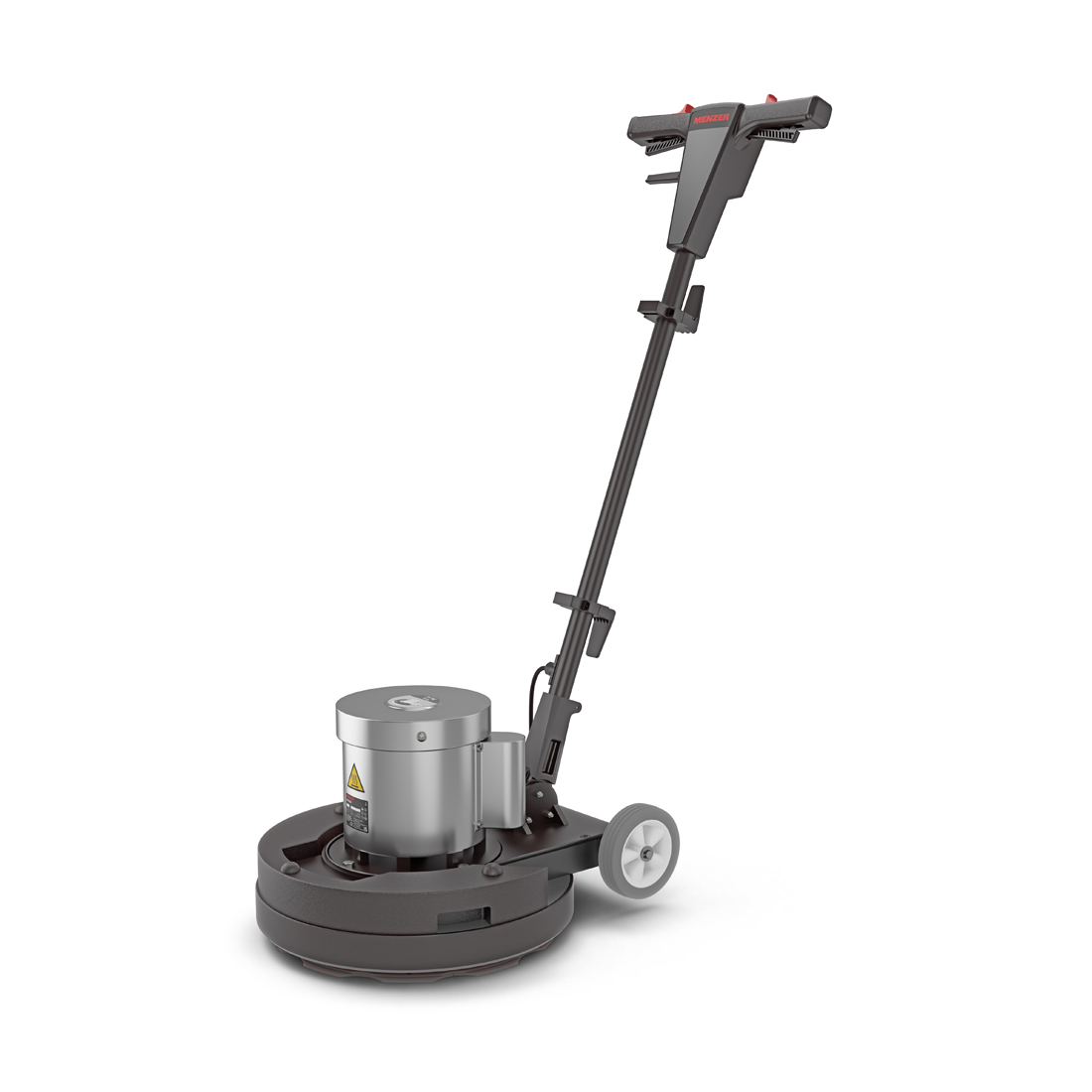

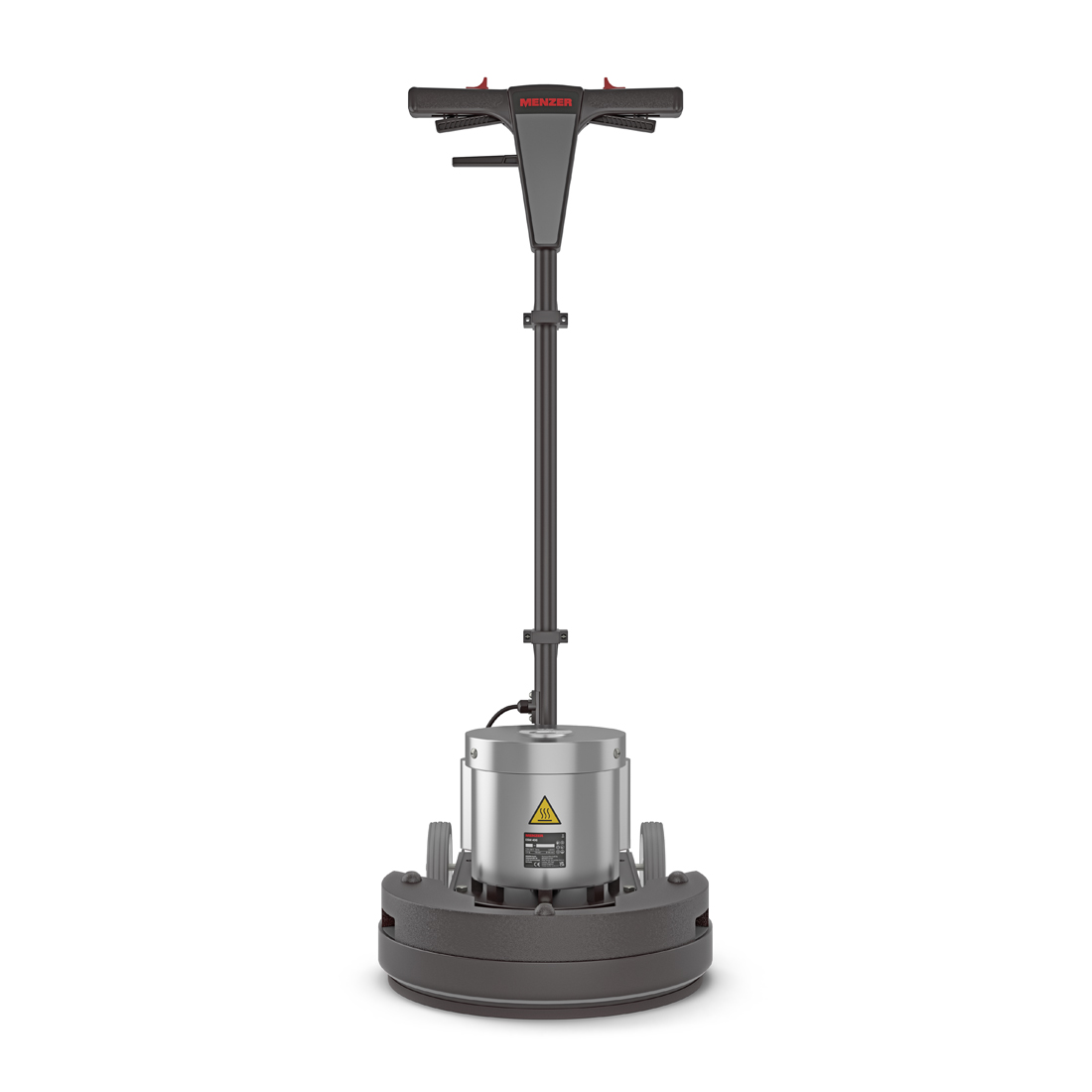

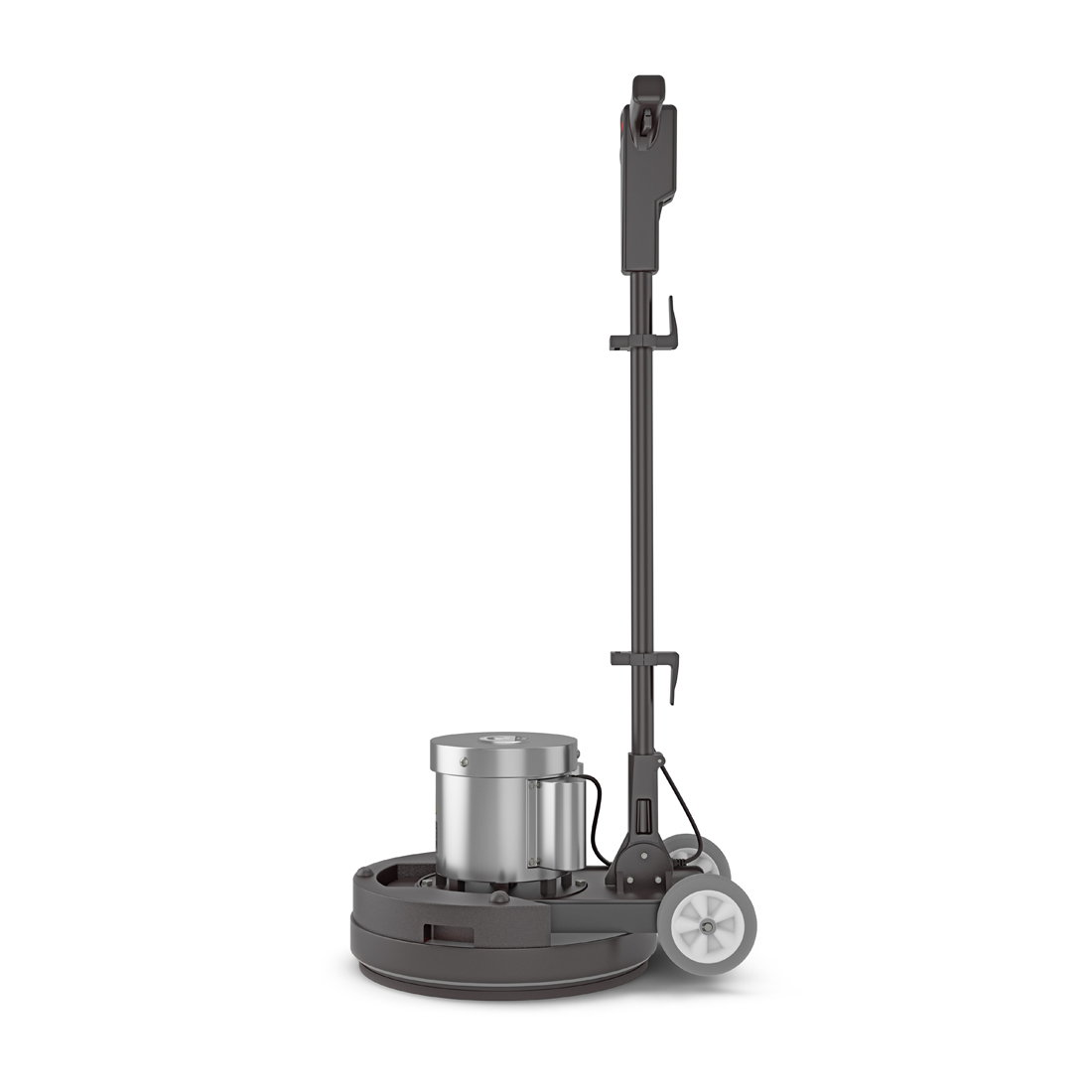

MENZER ESM 406 Heavy Duty


The machine for tough tasks.

  • Individually adjustable grinding pressure due to additional weight
  • Durable, powerful motor (1,200 W)
  • Maintenance-free planetary gear
  • Easy handling
  • Comprehensive equipment
  • Integrated safety switch
  • Adjustable handle

Technical Data

Voltage : 220–240 V ~ 50 Hz
Power consumption : 1,200 W
Weight: 32 kg
Idle speed : 150 min-1
Sanding disc : Ø 406 mm

Scope of Delivery

MENZER ESM 406
MENZER diamond grinding disc exclusive diamond segments
Additional weight: 12.5 kg

Price (MSRP)

1,130.00 € net
1,344.70 € inc. VAT
Item number: 116040000

The machine for tough tasks
High-quality diamond grinding disc
Additional weight for higher sanding pressure
Simple and convenient usage
The machine for tough tasks
The MENZER ESM 406 Heavy Duty single disc machine is particularly suitable for working on problematic and difficult surfaces. The diamond grinding disc that are included in the scope of delivery, combined with the additionally available 5 diamond segments masters effortlessly the most difficult grinding tasks. When using the additional weight supplied, the contact pressure can even be significantly increased and the removal rate increased. Whether concrete, screed, epoxy resin or adhesive residue - it's no problem for the MENZER ESM 406 Heavy Duty.

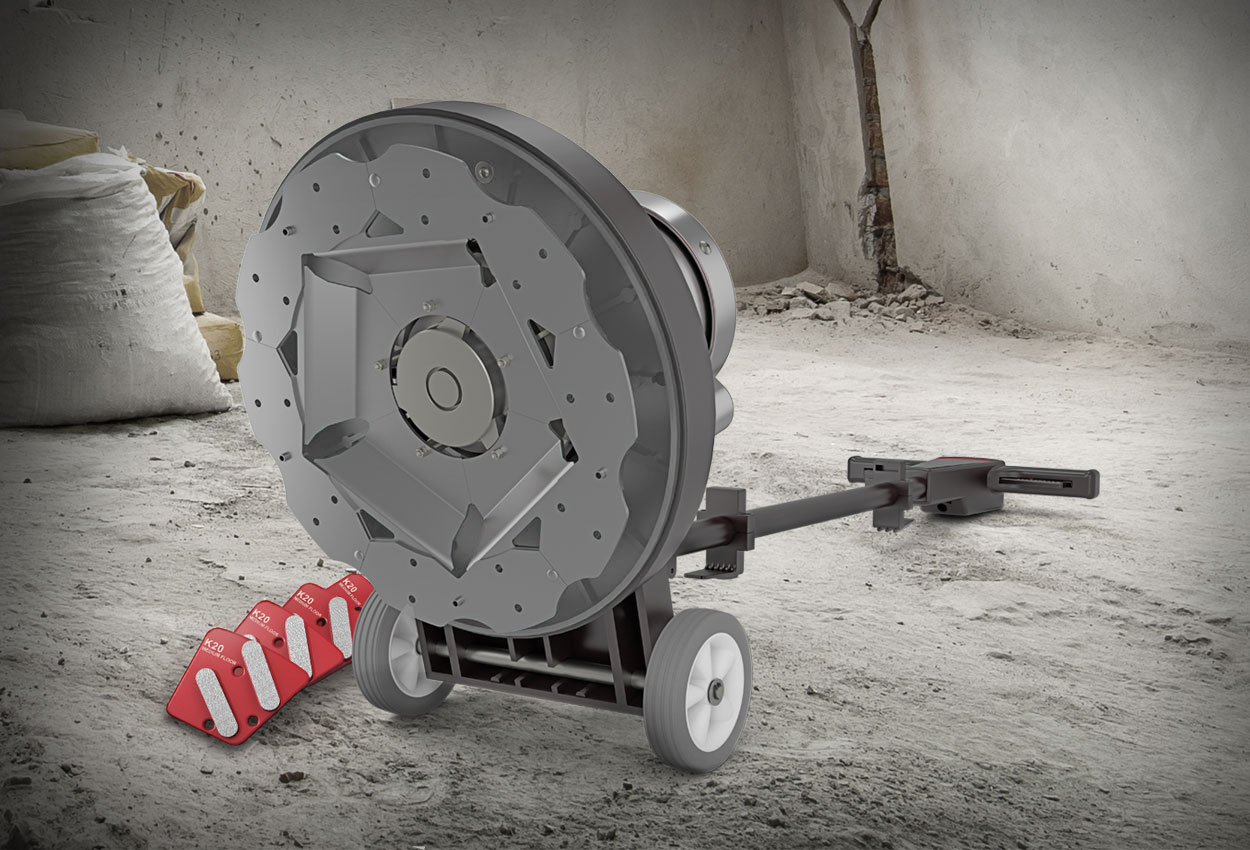

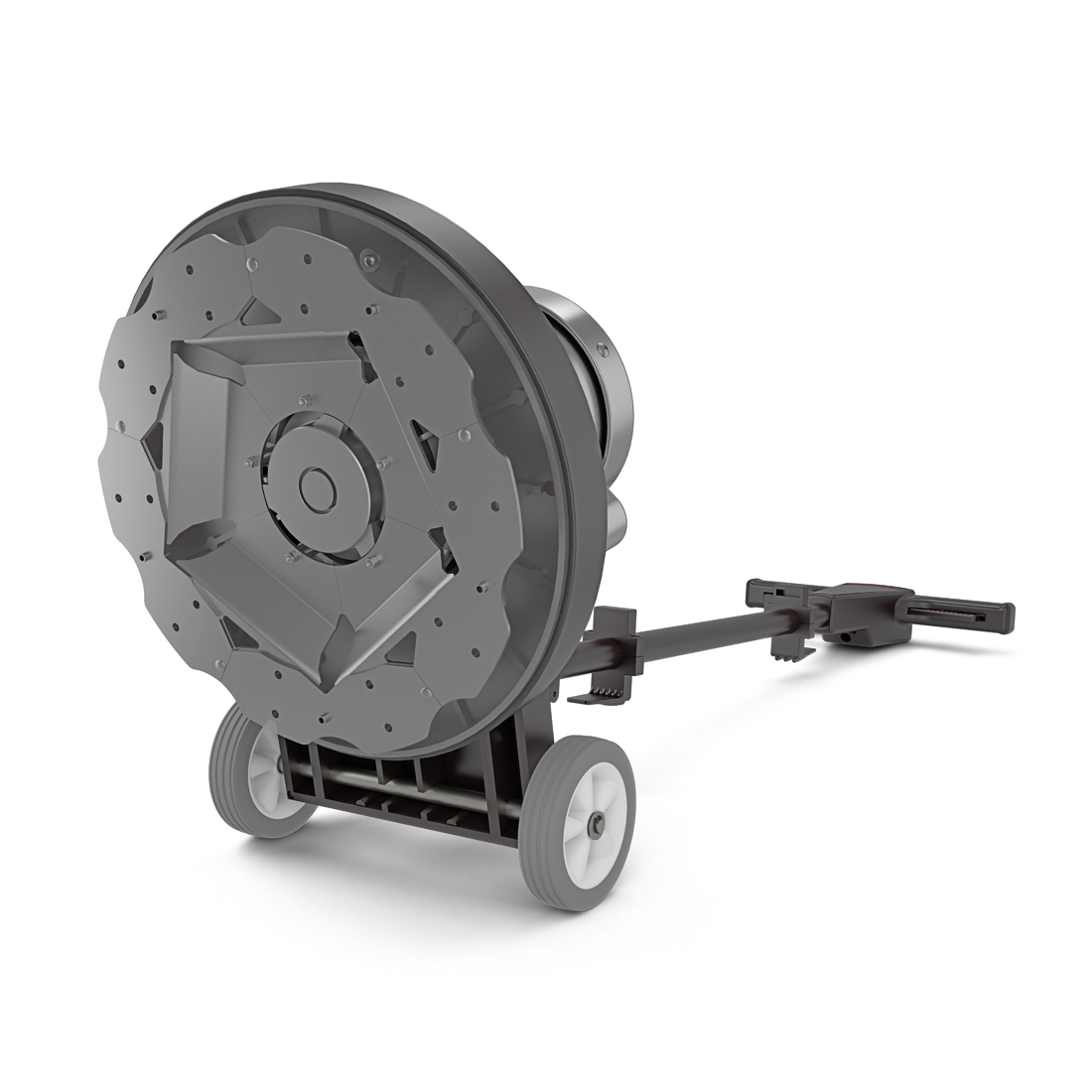

High-quality diamond grinding disc
The MENZER ESM 406 Heavy Duty is supplied together with a diamond grinding disc. The matching 5 diamond segments for efficient processing of different substrates are also available. A total of four different high-quality segment types are available for grinding tasks that arise.

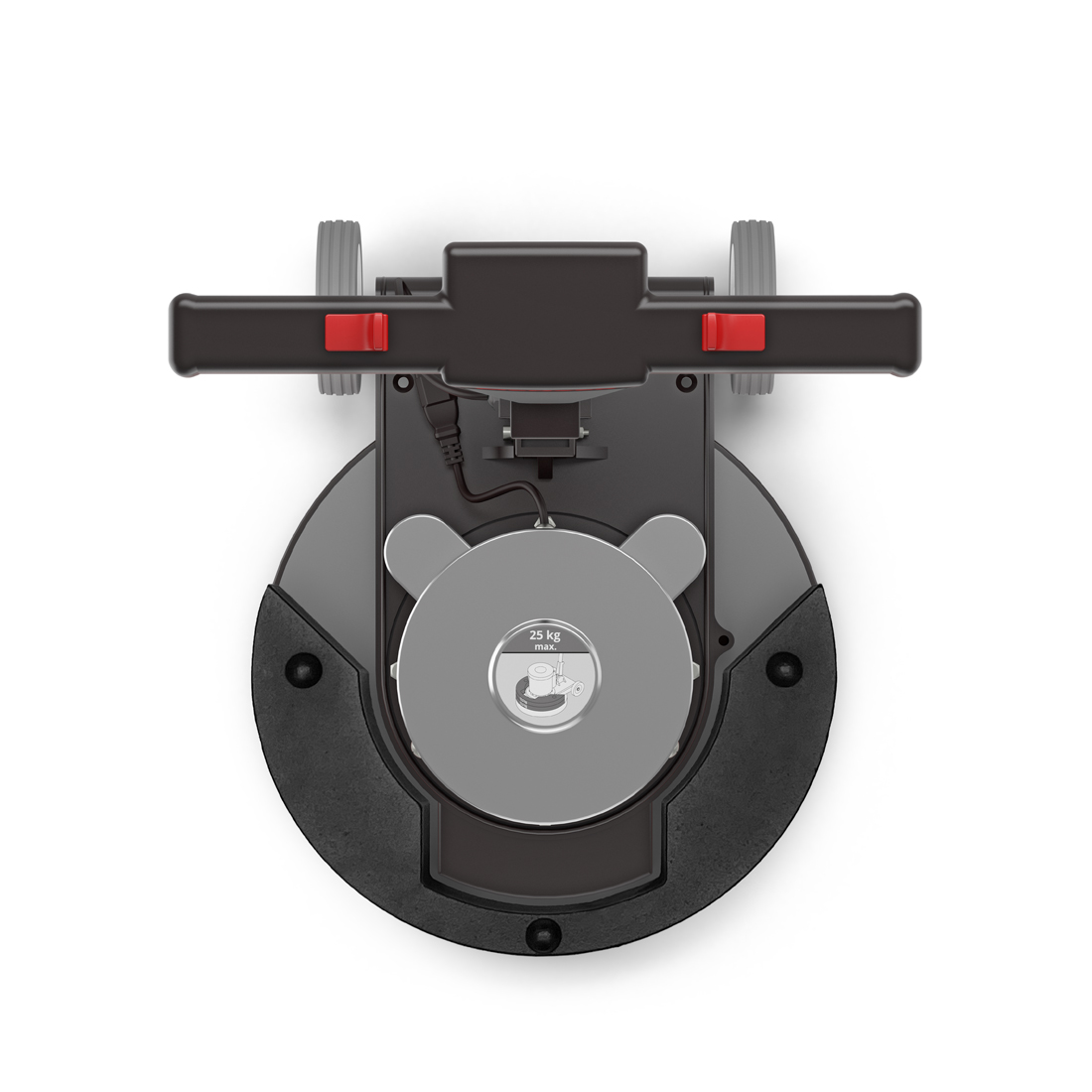

Additional weight for higher sanding pressure
The scope of delivery includes a 12.5 kg additional weight that can be mounted quickly and easily if required. It ensures even higher sanding pressure and a more aggressive sanding performance.
Simple and convenient usage

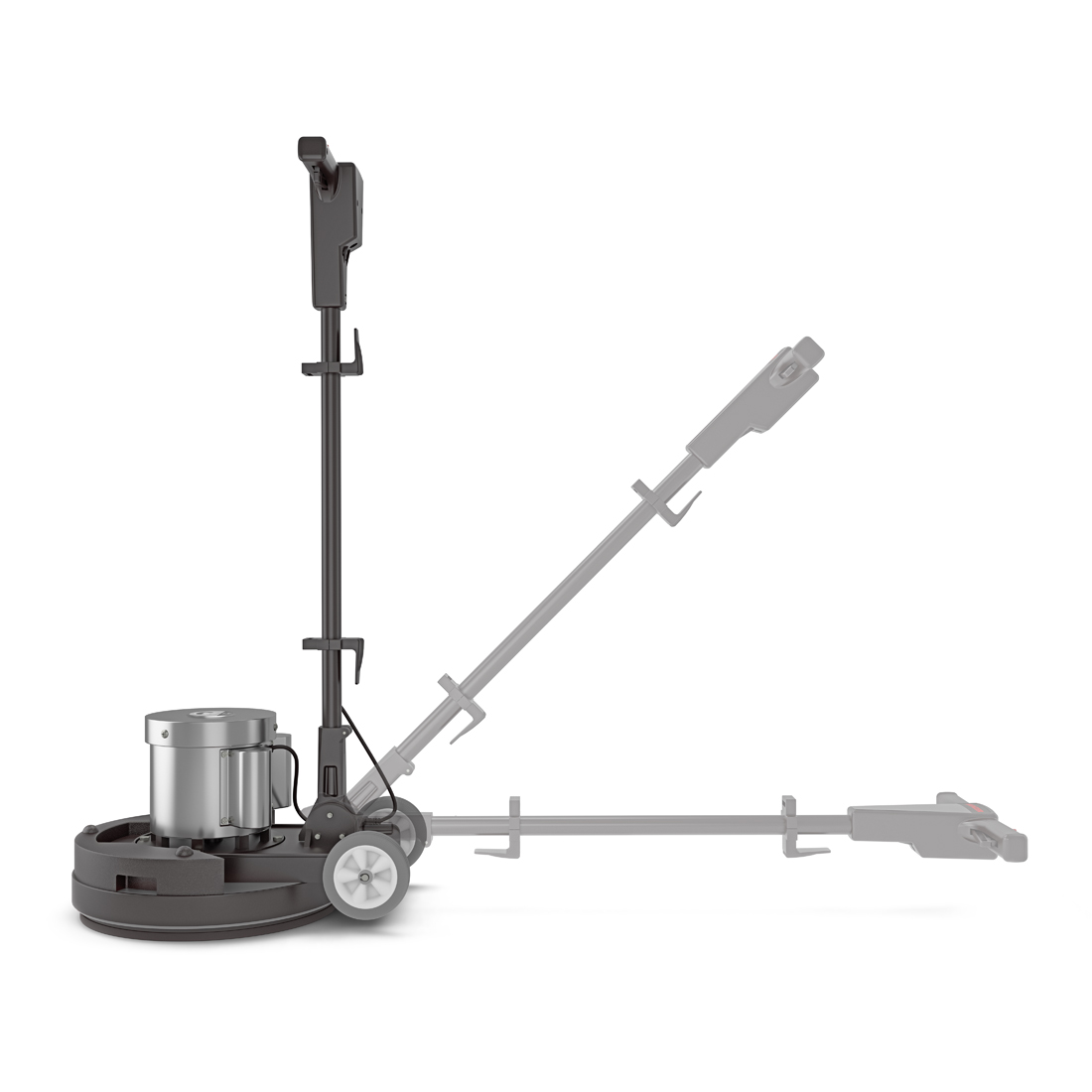

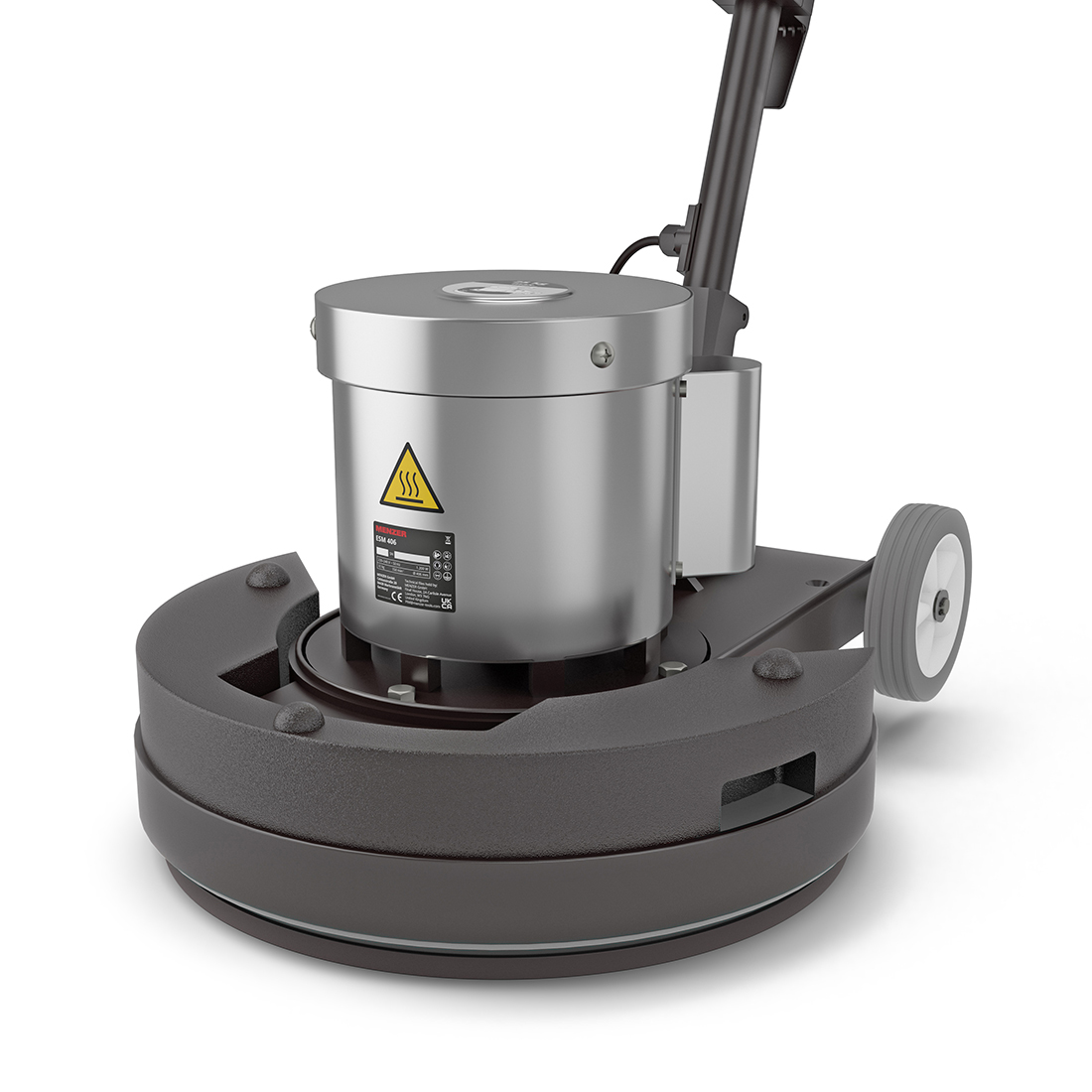

The MENZER ESM 406 Heavy Duty is equipped with a robust and ergonomic handle that can be individually adjusted to the height of the user. An integrated safety switch prevents the device from being switched on accidentally. The maintenance-free planetary gearbox also reliably ensures that the machine runs smoothly. Thanks to the large and robust wheels, the machine can be easily transported.

Accessories

Diamond driving disc
Diamond driving disc
Convertible driving disc (406 mm) excl. diamond segments
Pad holder
Pad holder
Pad holder (406 mm) for sanding discs with inner hole
Diamond segments
Diamond segments
G20 medium floor diamond segments for diamond driving discs
PCD (polycrystalline diamond) grit segments
PCD (polycrystalline diamond) grit segments
PCD (polycrystalline diamond) grit segments for diamond driving discs
PCD (polycrystalline diamond) segments
PCD (polycrystalline diamond) segments
PCD (polycrystalline diamond) segments for diamond driving discs
Diamond segments
Diamond segments
G20 soft floor diamond segments for diamond driving discs
Add-on weight
Add-on weight
12.5 kg add-on weight for increased abrasion pressure

Two-year manufacturer's warranty

MENZER BASE LINE tools come with a two-year manufacturer's warranty. These tools offer impressive reliability and performance. Different warranty conditions apply to business customers.
