MENZER VCM 530 PRO Wood


The compact vacuum cleaner for the removal of wood dust, Dust Class M

  • Wet/dry vacuum cleaner with high extraction performance
  • Dust class M: medium hazardous dusts
  • Automatic filter self-cleaning system in conjunction with candle filter for wood dust
  • Complete anti-static system with conductive accessories
  • Integrated power socket with automatic ON/OFF control
  • Exceptionally long filter service life
  • High vacuum performance
  • Robust plastic housing
  • Incl. fleece filter bag and disposal bag

Technical Data

Voltage: 220-240 V ~ 50 Hz
Max. performance: 1,380 W
Power rating of the device socket (EU): 25-2200 W
Max. volume flow: 4,440 l/min
Vacuum performance: 23.7 kPa
Sound pressure level: 69 dB(A)
Container volume: 30 l
Weight: 14.2 kg
Length of cable: 7 m
Length of suction hose: 4 m
Filling quantity (liquid): 17 l

Scope of Delivery

Industrial safety vacuum cleaner MENZER VCM 530 PRO Wood
Floor nozzles (wet and dry)
Crevice nozzle
Suction pipe
Elbow joint
4 m suction hose
Universal tool adapter
Candle filter for wood dust
Disposal bag 30/50 l (1 Pcs.)
Nonwoven filter bag 30 l (1 Pcs.)

Price (MSRP)

895.00 € net
1,065.05 € inc. VAT
Item Number: 120130000

Automatic filter self-cleaning system in conjunction with candle filter for wood dust
High vacuum performance
Sophisticated slotting system

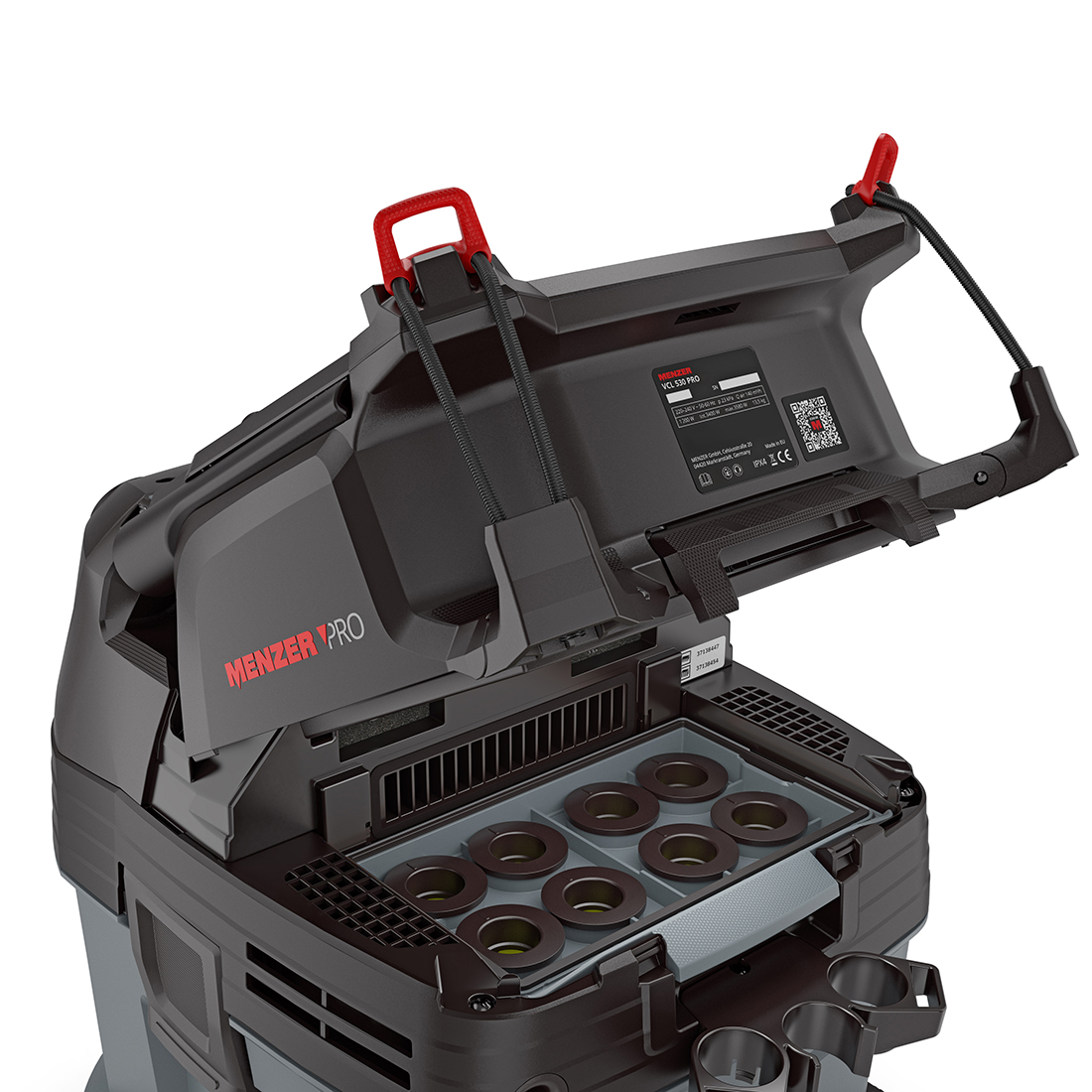

Automatic filter self-cleaning system in conjunction with candle filter for wood dust

The patented filter cleaning with sensor-controlled electronics ensures uninterrupted, constantly high suction power and protects with tested filtration efficiency of 99.9% for almost complete fine dust removal. The filter life of up to 1000 kg (wood dust) is unsurpassed. In combination with a new type of cartridge filter, very large quantities of wood and fibre dust can be extracted, which would very quickly lead to blockage with conventional filter systems.

High vacuum performance

MENZER PRO safety vacuum cleaner were developed specifically for the removal of dust and debris from sanding, milling, drilling and sawing tools directly at the source. The compact high performance turbine ensures the right amount of vacuum and power. That is why this professional tool satisfies highest requirements on building sites and in wood-processing companies.

Sophisticated slotting system

The rubberised surfaces of the vacuum cleaner hold tools safely in place, and they can be additionally secured using lashing straps and the eyelets provided. There is plenty of space for storing the crevice nozzle and other accessories on the side of the device to keep them within reach at all times.

Accessories

Candle filter for wood dust
Candle filter for wood dust

The candle filter is suitable for the extraction of large amounts of wood or fibre dust, as the PTFE coating and the structure of the filter feature a dust collection rate of 99.9%.

Nonwoven filter bags 30 l (5 Pcs.)
Nonwoven filter bags 30 l (5 Pcs.)

The 30 l nonwoven filter bags guarantee efficient filtration.

Disposal bag 30/50 l (5 pcs.)
Disposal bag 30/50 l (5 pcs.)

The disposal bag made of polyethylene is an excellent alternative to the fleece filter bag and ensures more freedom from dust in the sanding process.

Coupling sleeve accessory for universal adapter Ø35 mm 39/35/32/25
Coupling sleeve accessory for universal adapter Ø35 mm 39/35/32/25

The add-on sleeve can be used with the universal adapter, which forms part of the scope of delivery of all MENZER PRO vacuum cleaners.

Crevice nozzle Ø35 mm
Crevice nozzle Ø35 mm

Hard to reach areas like crevices, corners, and joints can be easily cleaned of dust and debris using the crevice nozzle.

Floor nozzle Ø35 mm
Floor nozzle Ø35 mm

The nozzle comes with one wet and one dry vacuuming attachment.

Chromed suction pipe Ø35 mm
Chromed suction pipe Ø35 mm

The delivery includes 2 chromed suction pipes with a length of 0.5 m each.

Universal tool adapter Ø35 mm 27/36
Universal tool adapter Ø35 mm 27/36

For the attachment of power tools on all MENZER vacuum cleaners

Coupling sleeve accessory for universal adapter Ø35 mm 39/44
Coupling sleeve accessory for universal adapter Ø35 mm 39/44

For the attachment of power tools on all MENZER vacuum cleaners

Elbow joint Ø35 mm electr. conductive
Elbow joint Ø35 mm electr. conductive

The electrically conductive elbow joint easily clicks into place on the right MENZER PRO vacuum cleaner via the tried and tested click lock system.

Suction hose Ø35 mm x 4 m electr. conductive
Suction hose Ø35 mm x 4 m electr. conductive

The electrically conductive suction hose is 4 metres long. It easily clicks into place on the right MENZER PRO vacuum cleaner via the tried and tested click lock system.

Three-year manufacturer's warranty

MENZER PRO LINE tools boast reliability and a long service life. MENZER ensures this with a three-year manufacturer's warranty. The new tool must be registered within four weeks of purchase in order to benefit from the warranty.
