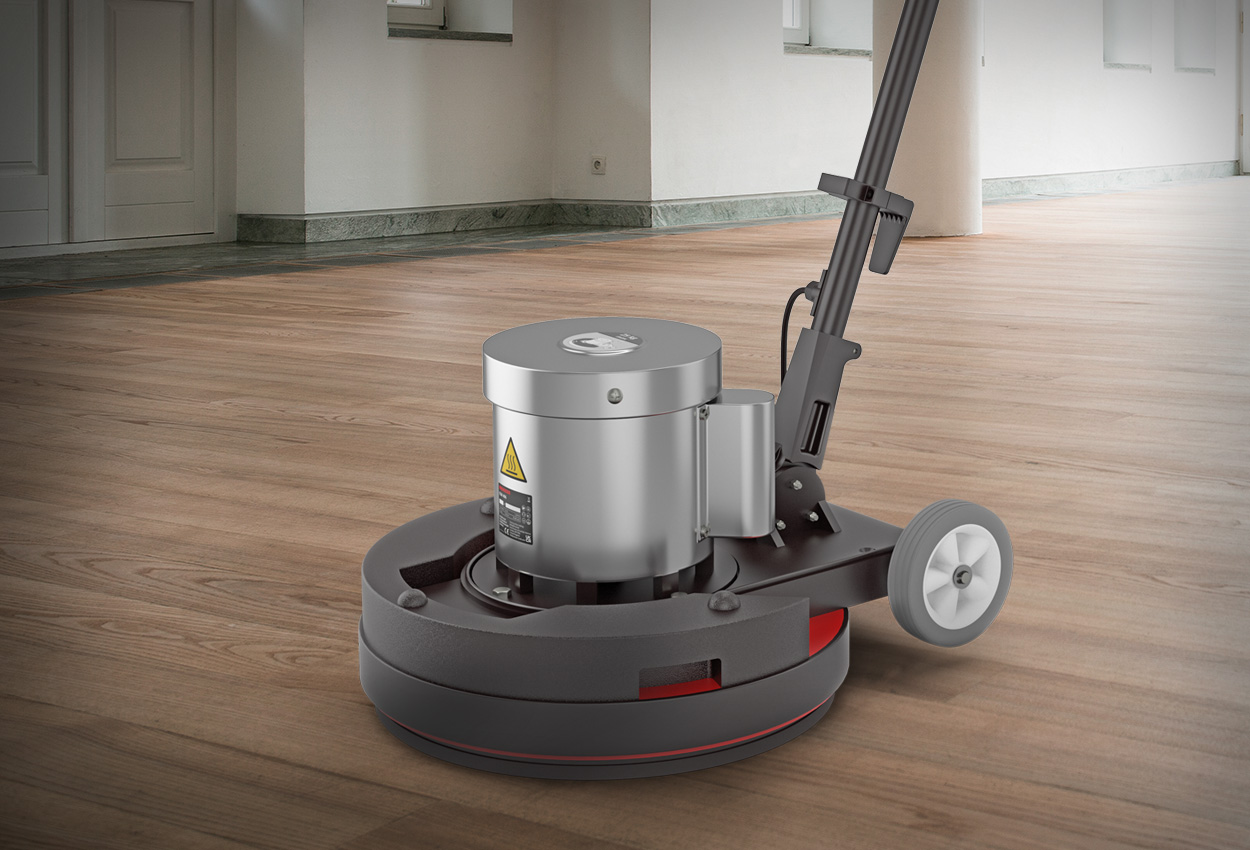

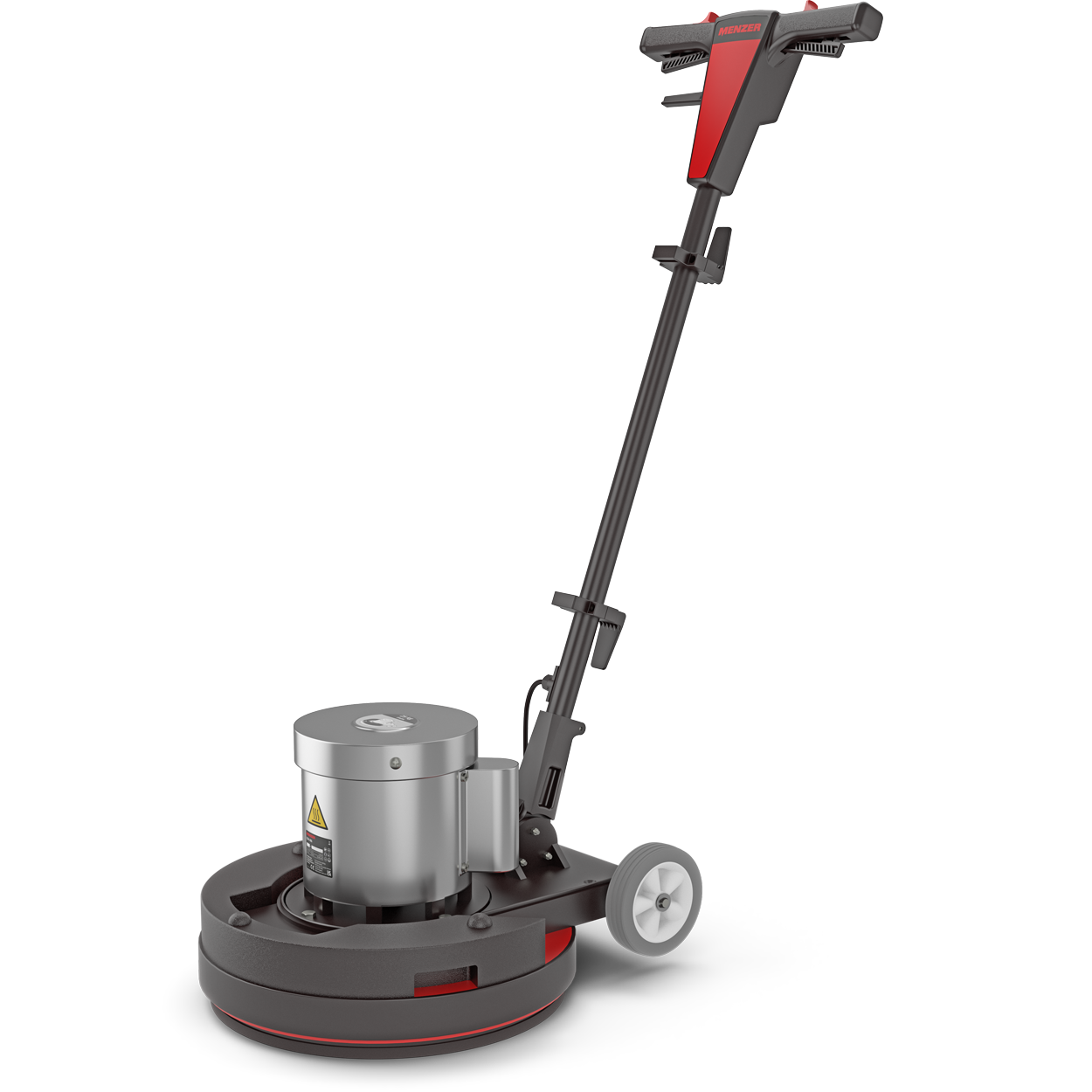

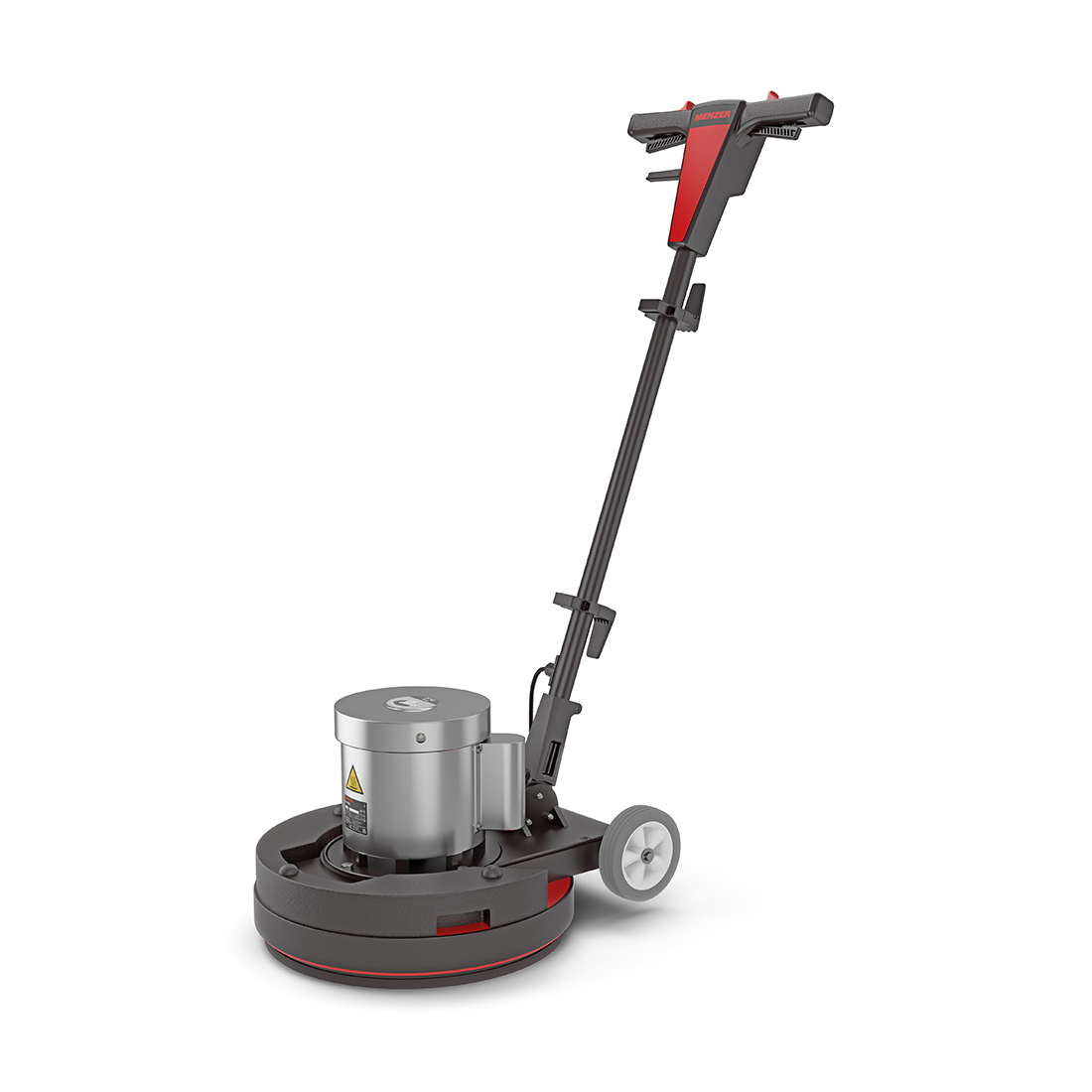

MENZER ESM 406 Floor Tec


The universal floor grinding machine

  • Powerful single disc machine for grinding all floors from wood to concrete
  • Extensive accessories
  • Durable, powerful motor
  • Maintenance-free planetary gear
  • Height adjustable handle unit
  • Integrated safety switch

Technical Data

Voltage: 220–240 V ~ 50 Hz
Power consumption: 1,200 W
Weight: 32 kg
Idle speed: approx. 150 min⁻¹
Sanding discs: Ø 406 mm

Scope of Delivery

MENZER ESM 406
Sanding disc for grinding wheels
Sanding disc for hook & loop sanding discs
Sanding disc for sanding and polishing pads
Additional weight: 12.5 kg

Price (MSRP)

940,00 € net
1.118,60 € inc. VAT
Item Number: 116 011 000

The all-rounder for soil cultivation
Nearly dust-free work
Easy and comfortable to use
The all-rounder for soil cultivation

The scope of delivery already includes a comprehensive range of easily exchangeable sanding discs for all common substrate preparation work. With the optionally available grinding disc for diamond and PCD segments as well as the Multidisk grinding disc, even highly specialised grinding tasks can be reliably realised with the ESM 406.

Nearly dust-free work

In combination with an industrial vacuum cleaner, the optionally available suction ring minimises dust development during sanding, polishing or cleaning. For sanding wooden floors, the antistatic safety vacuum cleaner MENZER VCM 550 PRO Wood with patented sensor-controlled filter cleaning is especially recommended, which can also reliably pick up hazardous wood dust.

Easy and comfortable to use

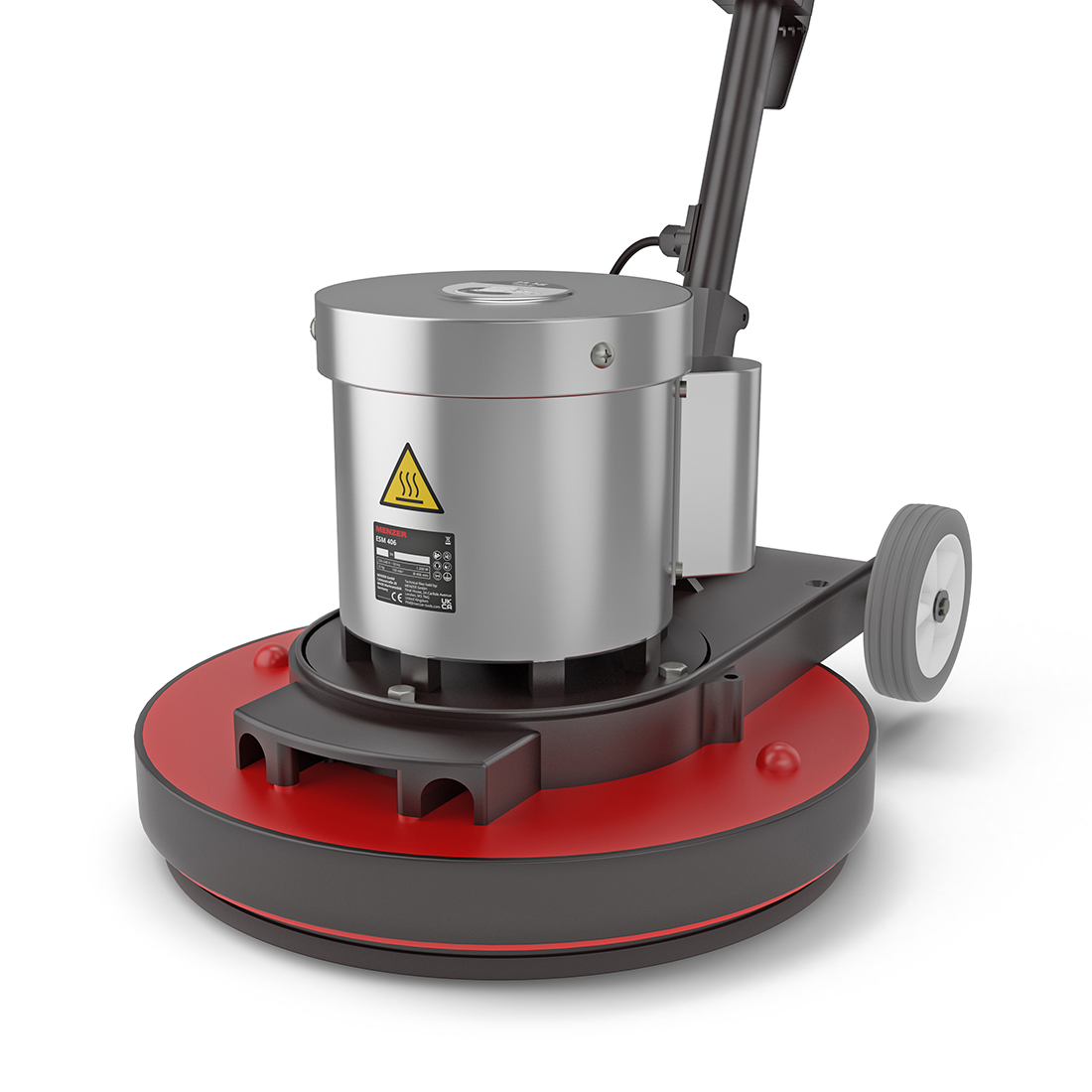

The MENZER ESM 406 has a robust and ergonomic handle that can be individually adjusted to the height of the user. The integrated safety switch prevents the machine from being switched on accidentally. The maintenance-free planetary gearbox also reliably ensures that the machine runs smoothly. Thanks to the large and robust wheels, the machine can be easily transported.

Accessories

Hard brush
Hard brush

Brushes for high-impact floor cleaning

Cleaning kit
Cleaning kit

Accessory kit to convert the ESM 406 into a maintenance and cleaning tool

PCD (polycrystalline diamond) segments
PCD (polycrystalline diamond) segments

PCD (polycrystalline diamond) segments for diamond driving discs

Add-on weight
Add-on weight

12.5 kg add-on weight for increased abrasion pressure

Grinding disc for diamond segments
Grinding disc for diamond segments

Convertible sanding disc (406 mm) that can be equipped with up to 10 different, optionally available segments

Pad holder
Pad holder

Pad holder (406 mm) for sanding discs with inner hole

PCD (polycrystalline diamond) grit segments
PCD (polycrystalline diamond) grit segments

PCD (polycrystalline diamond) grit segments for diamond driving discs

Water tank
Water tank

Large 8 l tank for water and cleaning agents

Dust extraction ring
Dust extraction ring

MENZER ESM 406 dust extraction ring

Diamond segments
Diamond segments

G20 medium floor diamond segments for diamond driving discs

Hook & loop pad holder
Hook & loop pad holder

Pad holder (406 mm) for hook & loop sanding discs

Soft brush
Soft brush

Brushes for low-impact floor cleaning

Multi-disc driving disc
Multi-disc driving disc

Driving disc with 5 satellites for 125 mm sanding discs

Diamond segments
Diamond segments

G20 soft floor diamond segments for diamond driving discs

Pad holder for pads
Pad holder for pads

Pad holder (406 mm) for sanding and polishing pads

Two-year manufacturer's warranty

MENZER BASE LINE tools come with a two-year manufacturer's warranty. These tools offer impressive reliability and performance. Different warranty conditions apply to business customers.
